APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-12SR
$ 2,472
$ 4,495
APlusLift AP-12SR Overhead Two-Post Lift – 12,000 LB Capacity
Professional-Grade Performance with Industry-Leading Warranty
The APlusLift AP-12SR is a 12,000 lb overhead two-post vehicle lift engineered for professional workshops that demand strength, safety, and long-term reliability. Built with premium materials and precision manufacturing, this lift features a single-point safety lock release, CE-certified construction, and an industry-leading 3-year parts warranty.
Industry-Leading Warranty
3-Year Warranty on All Parts (36 months)
A $499 value, included at no extra cost
Full availability of replacement and optional parts
Key Features
12,000 LB Lifting Capacity
Suitable for cars, SUVs, pickup trucks, and light-duty commercial vehicles.Single-Point Safety Lock Release System
Simple, safe operation with centralized lock control.Truck Adapter Sets Included
Two sets of 3″ and 6″ height adapters, allowing up to 6′7″ maximum lift height with adapters installed.CE-Certified Lift Structure & Hydraulic System
Tested to 115% dynamic load and 150% static load capacity for superior safety margins.All Robot-Welded Steel Construction

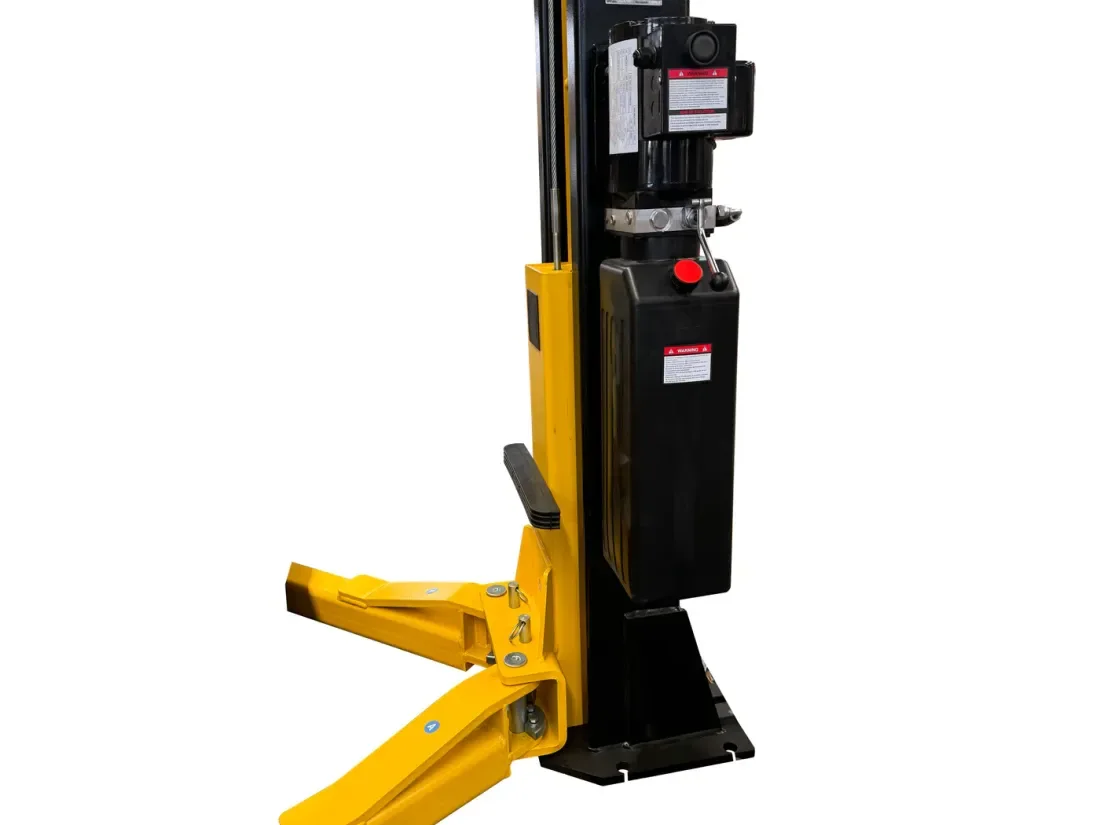

Finished with a durable powder-coated surface for long-term corrosion resistance.Direct-Drive Hydraulic System

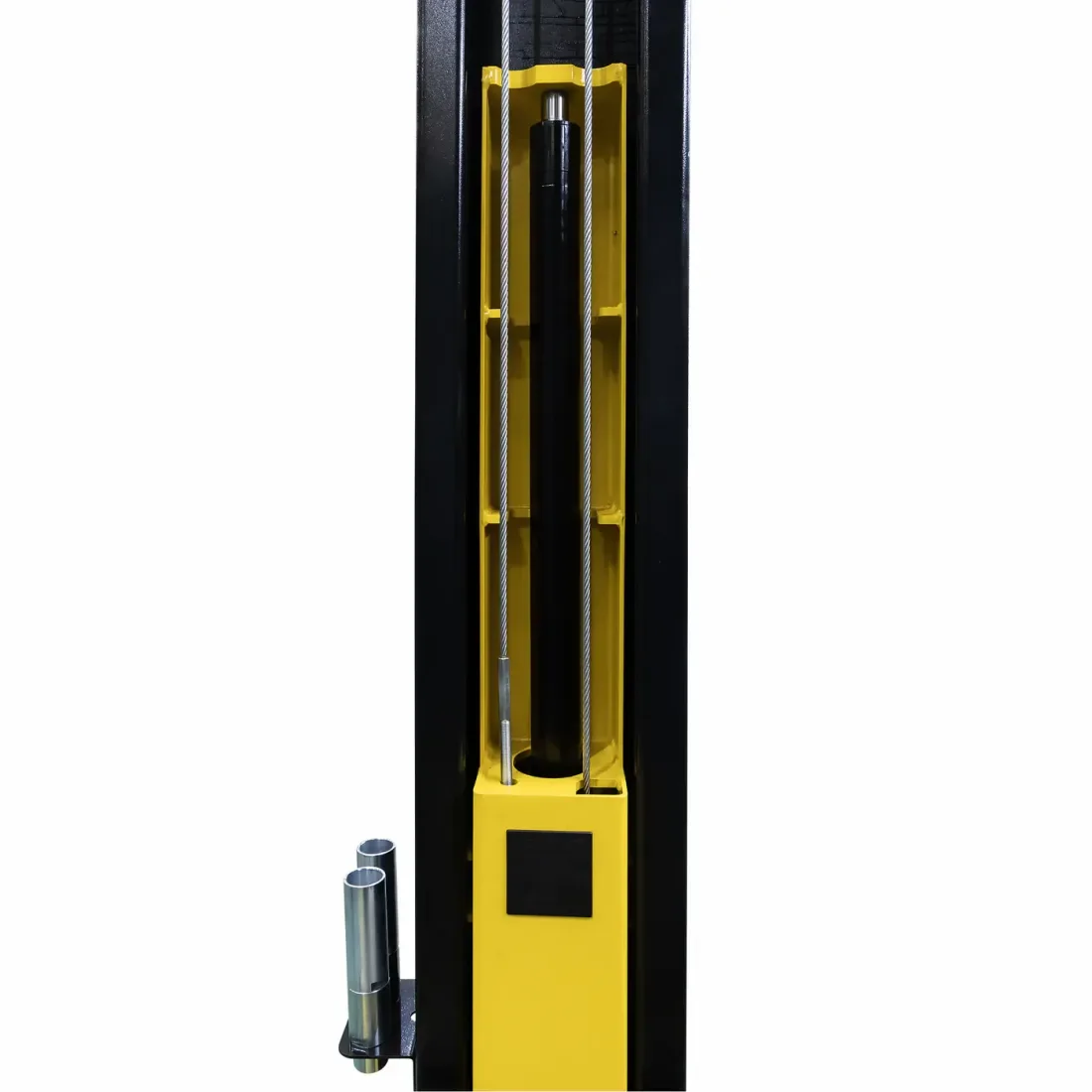

Dual hydraulic cylinders provide smooth, balanced, and reliable lifting.
Shipping Information
Free shipping to the lower 48 states
Forklift (or equivalent) required on-site for delivery
No liftgate service available
Free pickup available at nearby freight terminals
Forklift rental is not recommended and not reimbursed
Remote or limited-access locations may incur additional costs (see shipping policy)
Technical Specifications
Model Comparison
Model: AP-12SR (This Model)

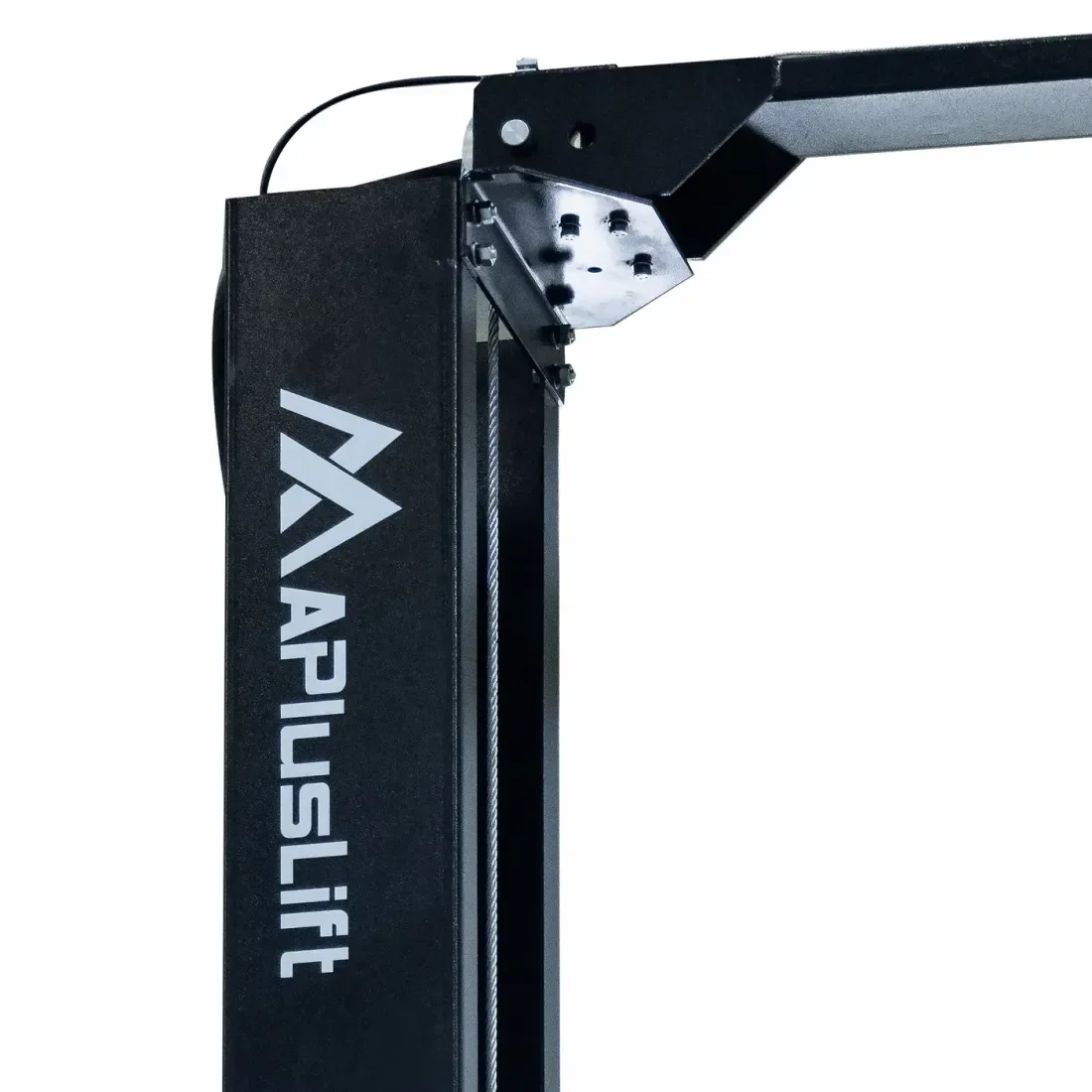

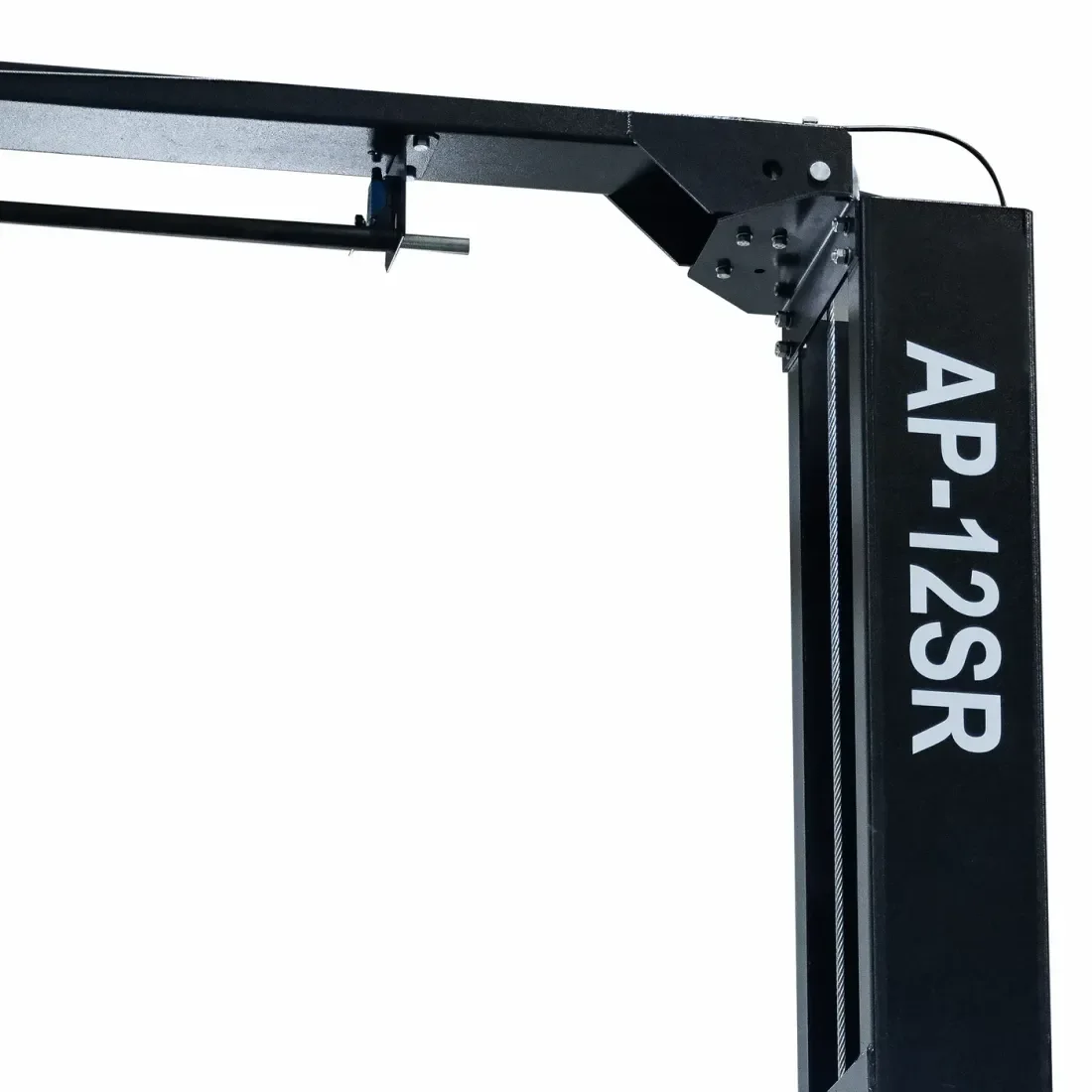

Style: Overhead
Lock Release: Single-Point Release
Warranty: 3 Years (36 Months)
Lifting Capacity: 12,000 lbs
Overall Height: 165″
Overall Width: 149″
Drive-Through Width: 109″
Column-to-Column Width: 123″
Maximum Lift Height (with adapters): 79″
Maximum Lift Height (without adapters): 70″
Minimum Pad Height: 4″
Motor: 220V Single Phase, 3HP Inverter Motor (30A breaker recommended)
Hydraulic Oil: 3–5 gallons AW32 / AW46 (not included)
Time to Full Rise: 75 seconds
Shipping Weight: 2,500 lbs
Shipping Package Size: 117″ L × 22″ W × 50″ H
Construction & Materials
Column Steel Thickness: 1/4″
Carriage Steel Thickness: 1/4″
Carriage Yoke Thickness: 3/4″
Arm Steel Thickness: 5/16″
Base Plate Thickness: 13/16″
Carriage Material: Q355 (ASTM A572), stronger than standard Q235 steel
Arm Assembly
Symmetrical Arm Design
Front Arms: Straight, 3-stage reach from 37½″ to 72 3/16″
Rear Arms: Straight, 3-stage reach from 37½″ to 72 3/16″
Included Components
Four adjustable screw lift pads
Two sets of truck adapters (3″ and 6″ tall)
Ten anchor bolts
Ten shims
Complete hardware kit
Concrete & Installation Requirements
Concrete Thickness: Minimum 6″ at 3,500 PSI, reinforced with steel or fiberglass
4″ concrete permitted only for vehicles under 9,000 lbs
Professional installation strongly recommended
Advanced Safety & Performance Features
Single-point safety lock release
Automatic arm lock restraints
Built-in hydraulic relief valve to prevent overload

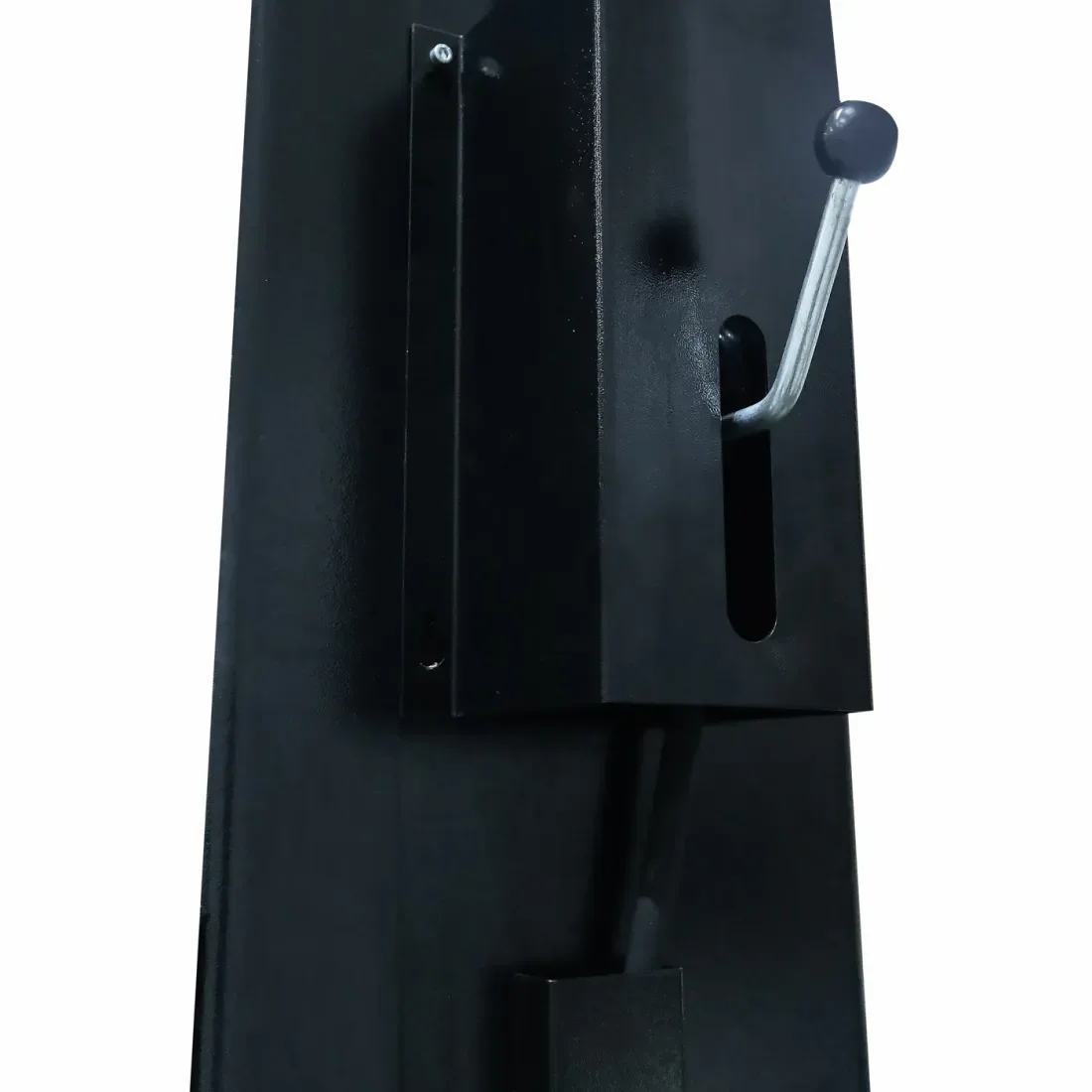

Manual lowering control lever
Door guard rubber protection
Upper-limit safety switch for cylinder stroke protection

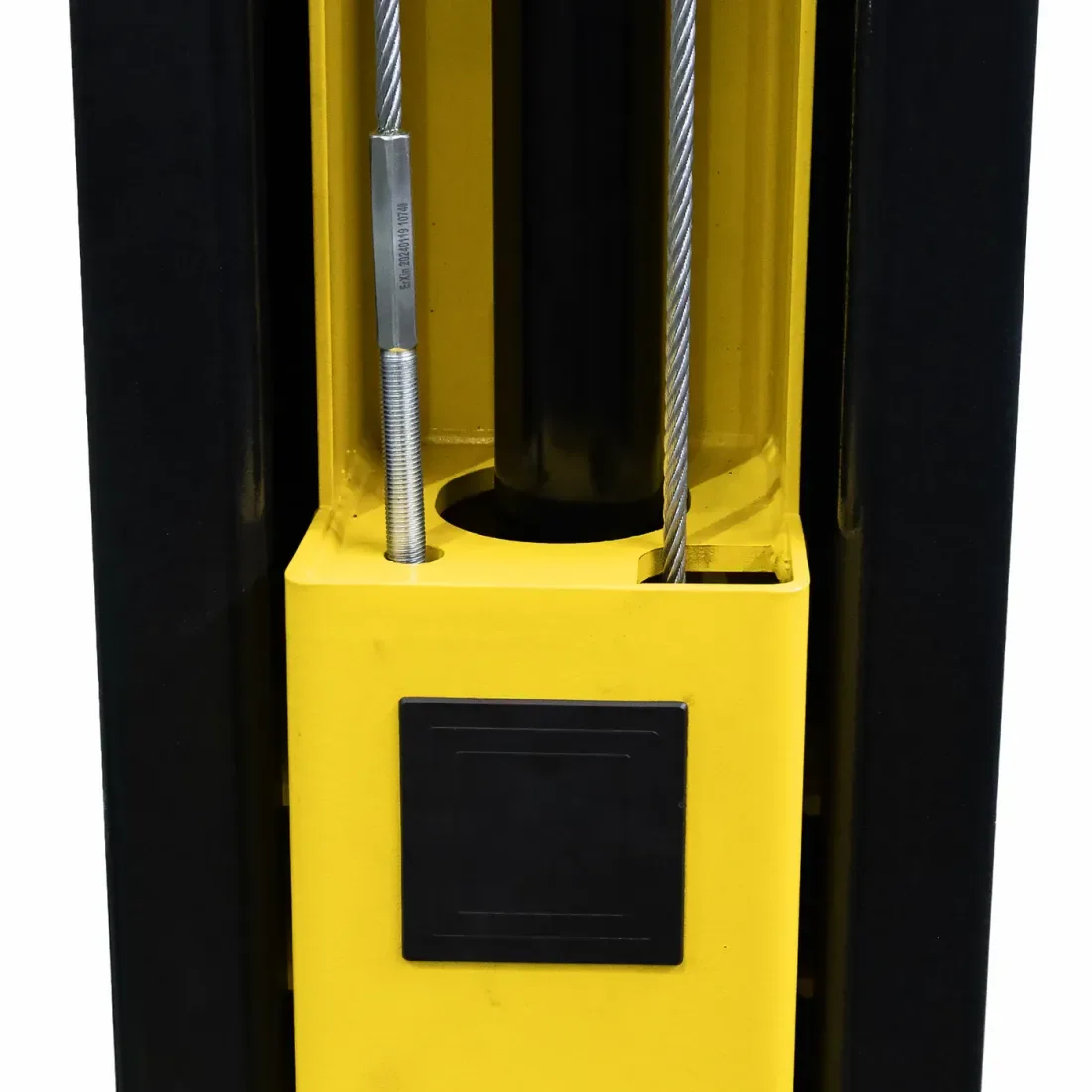

Heavy-duty 3/8″ synchronization cables with 4 5/16″ pulleys
Ultra-high molecular, self-lubricating nylon sliders for smooth carriage movement
Double seal rings protecting hydraulic PU materials
Built for Professional Use
The APlusLift AP-12SR delivers exceptional strength, precision, and safety, making it an ideal choice for commercial repair shops and serious automotive professionals who require dependable lifting performance day after day.
