APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-14SR
$ 1,847
$ 4,995

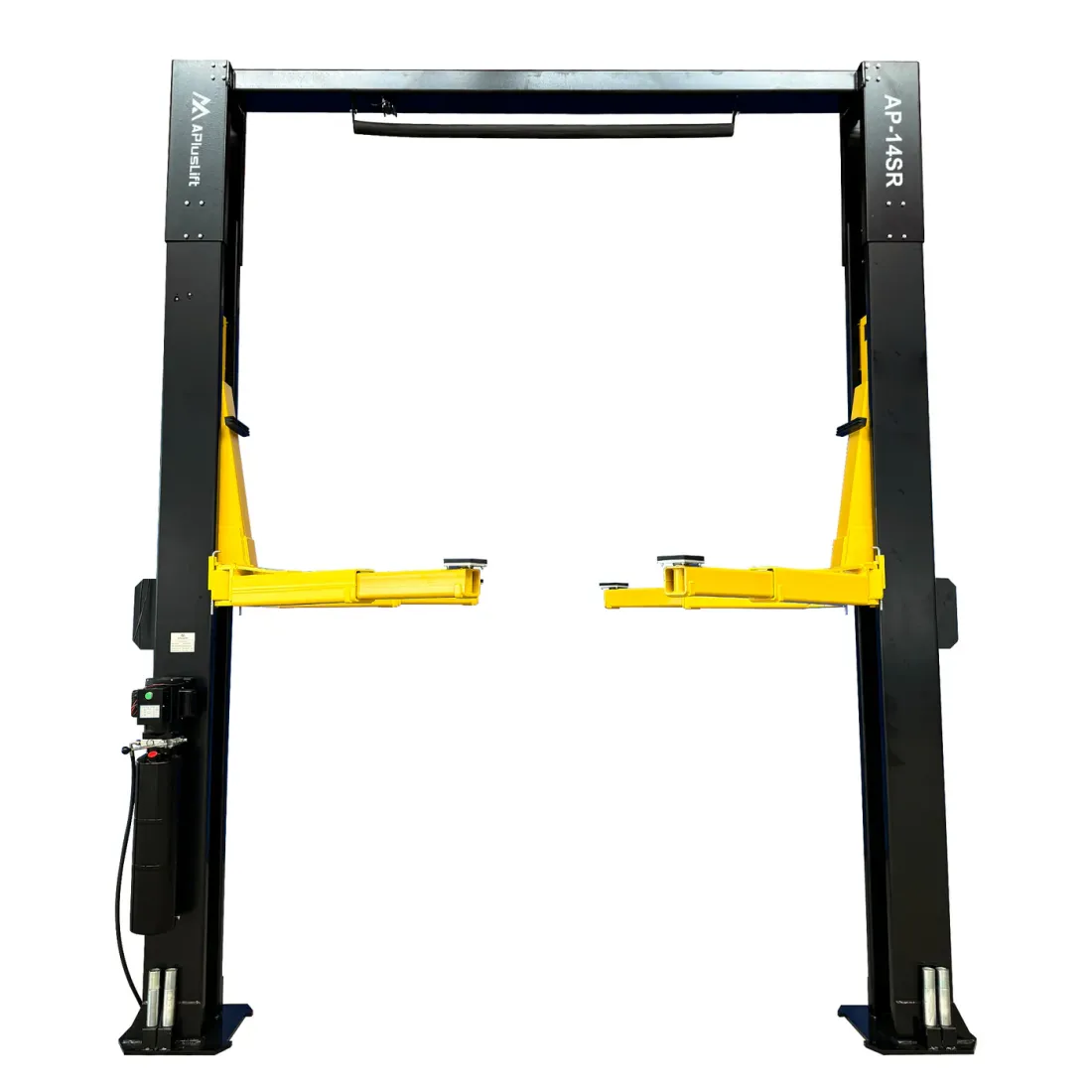

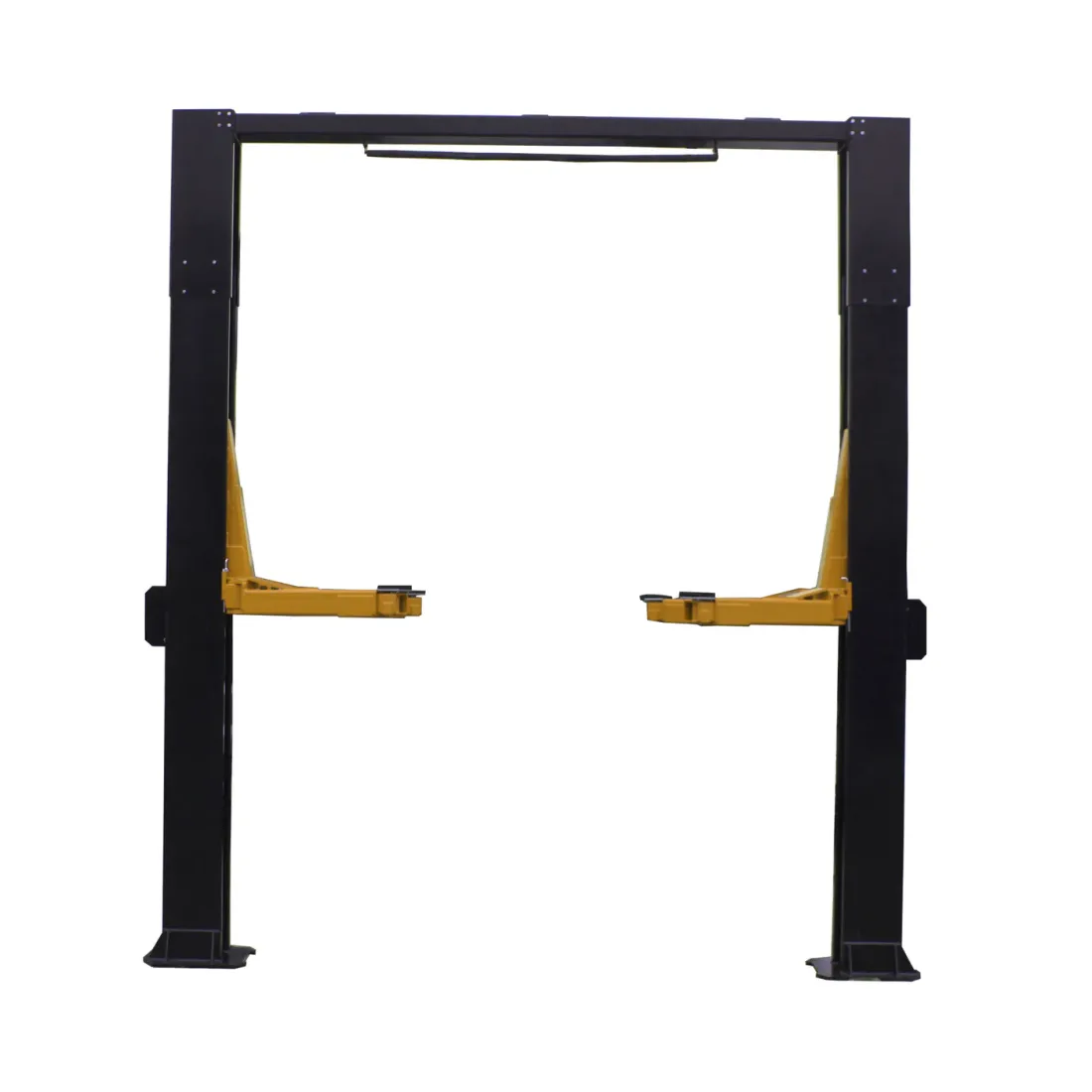

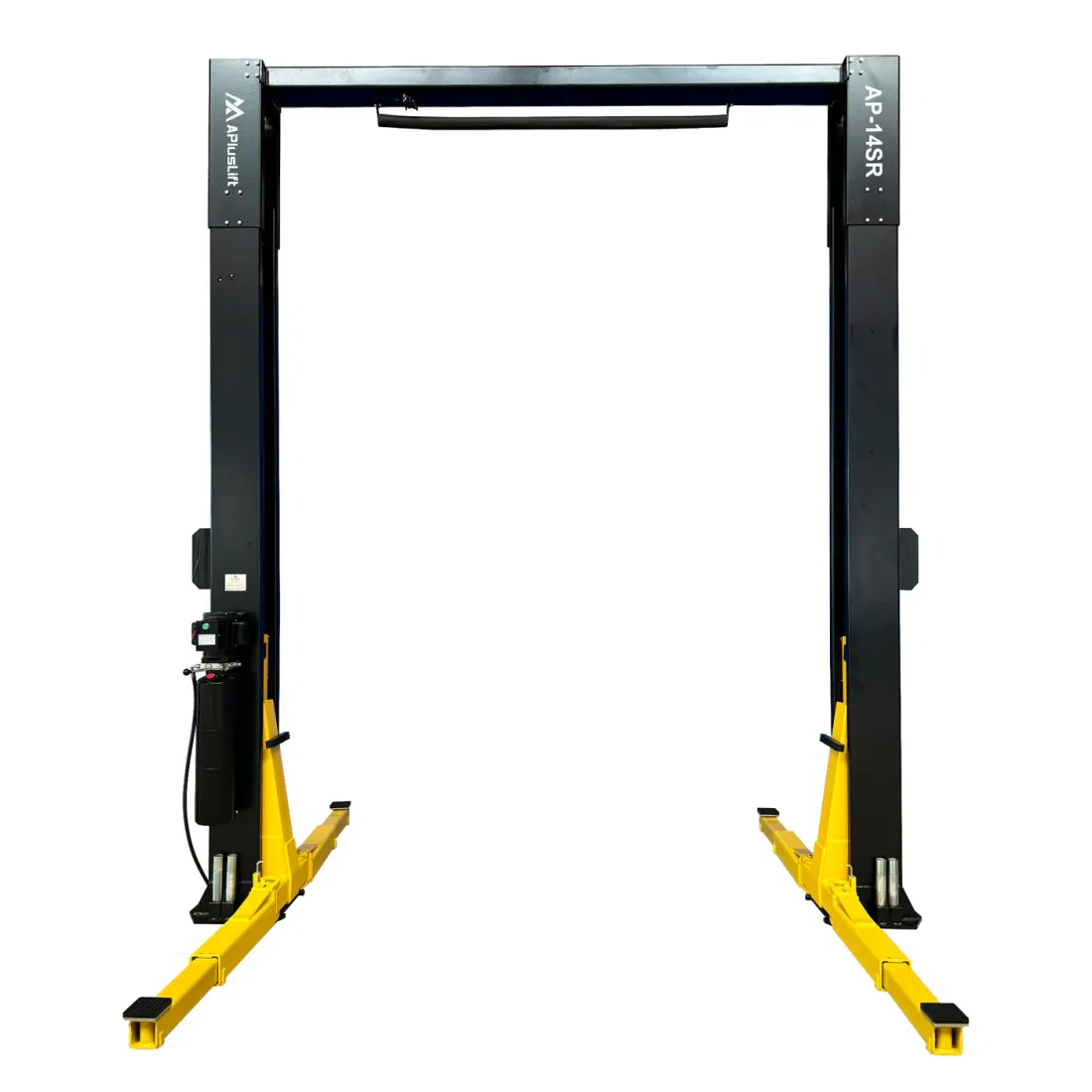

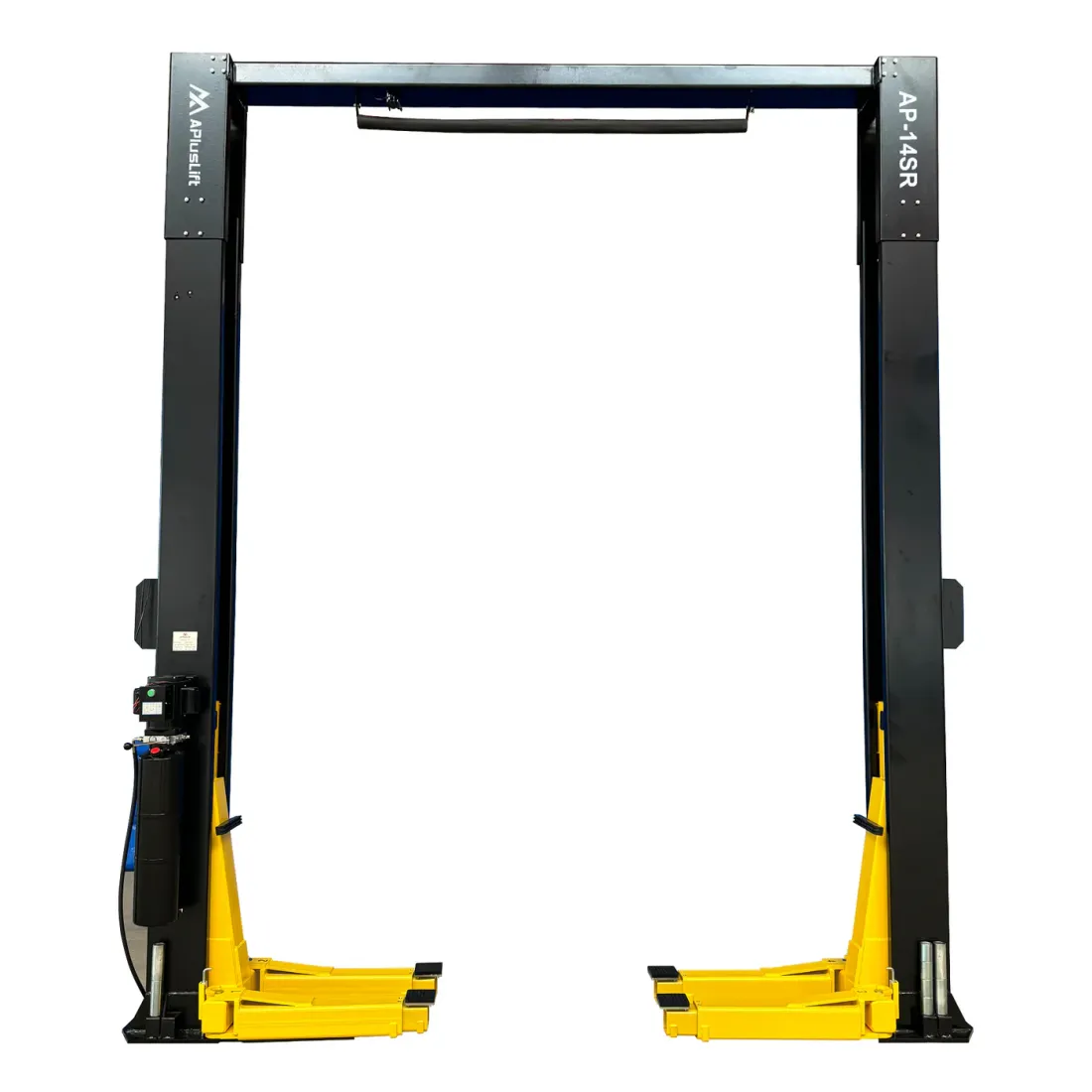

APlusLift AP-14SR Overhead Two-Post Lift – 14,000 lb Capacity
Heavy-Duty Professional Lift with Industry-Leading Warranty
The APlusLift AP-14SR is a 14,000 lb overhead two-post vehicle lift engineered for professional automotive shops that demand exceptional strength, safety, and long-term reliability. Built with high-quality materials and precision workmanship, this lift features a single-point safety lock release system, CE-certified structure and hydraulics, and an industry-leading 3-year parts warranty.
Industry-Leading Warranty & Support
3-Year Warranty on All Parts (36 months)
A $499 value, included at no additional cost
Full availability of replacement and optional parts for long-term support
Key Features & Benefits
14,000 lb Lifting Capacity
Designed to safely lift cars, SUVs, pickups, and heavier vehicles.Single-Point Safety Lock Release
Allows both columns to disengage simultaneously for safe, efficient lowering.Truck Adapters Included
Two complete sets of height adapters:2¾″ tall adapters
5½″ tall adapters
Provides up to 6′7″ maximum lift height with adapters installed.
CE-Certified Lift Structure & Hydraulic System
Tested to 115% dynamic load and 150% static load capacity for enhanced safety margins.Robot-Welded Steel Construction

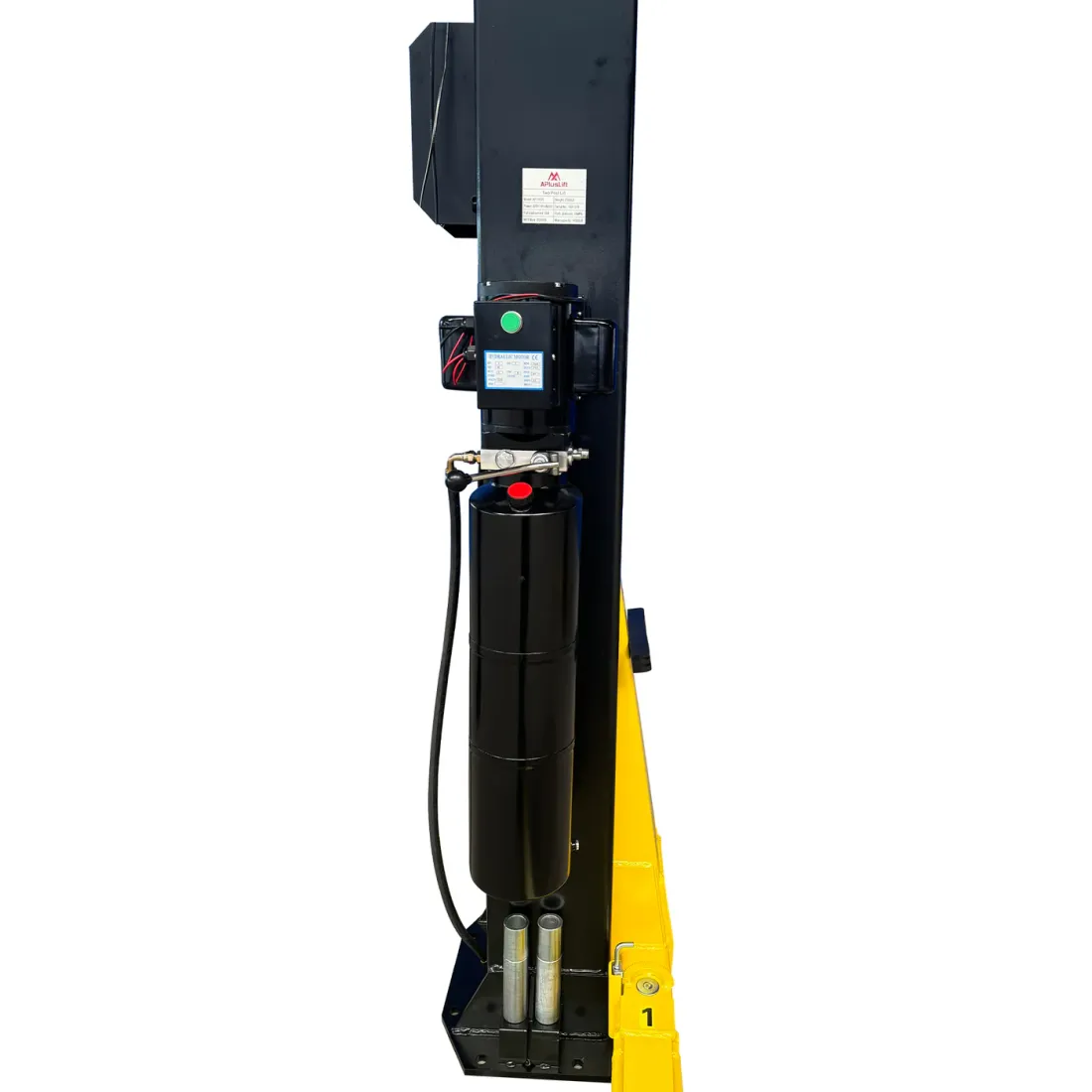

Precision robotic welding combined with a durable powder-coated finish ensures strength, corrosion resistance, and long service life.Direct-Drive Hydraulic System
Dual hydraulic cylinders deliver smooth, balanced, and reliable lifting performance.
Shipping Information
Free shipping to the lower 48 states
Forklift or similar equipment required on-site for delivery
No liftgate service available
Free pickup available at a nearby freight terminal
Forklift rental is not recommended and is not reimbursed
Additional charges may apply for remote or limited-access locations (see shipping policy)
Technical Specifications
Model Comparison
Model: AP-14SR (This Model)
Style: Overhead
Lock Release: Single-Point Release
Warranty: 3 Years (36 Months)
Lifting Capacity: 14,000 lbs
Overall Height: 165 11/32″
Overall Width: 142 1/8″
Maximum Lift Height (with adapters): 79 19/32″
Maximum Lift Height (without adapters): 74 3/32″
Minimum Pad Height: 6 11/16″
Drive-Through Width: 104 1/8″
Column-to-Column Width: 114 11/16″
Column Cross Section: 12 7/32″ L × 9 27/32″ W
Motor: 220V Single Phase, 3HP (30A breaker recommended)
Hydraulic Oil: 3.2–5 gallons AW32 / AW46 (not included)
Time to Full Rise: 75 seconds
Shipping Weight: 2,300 lbs
Shipping Package Size: 150″ L × 33″ W × 21″ H

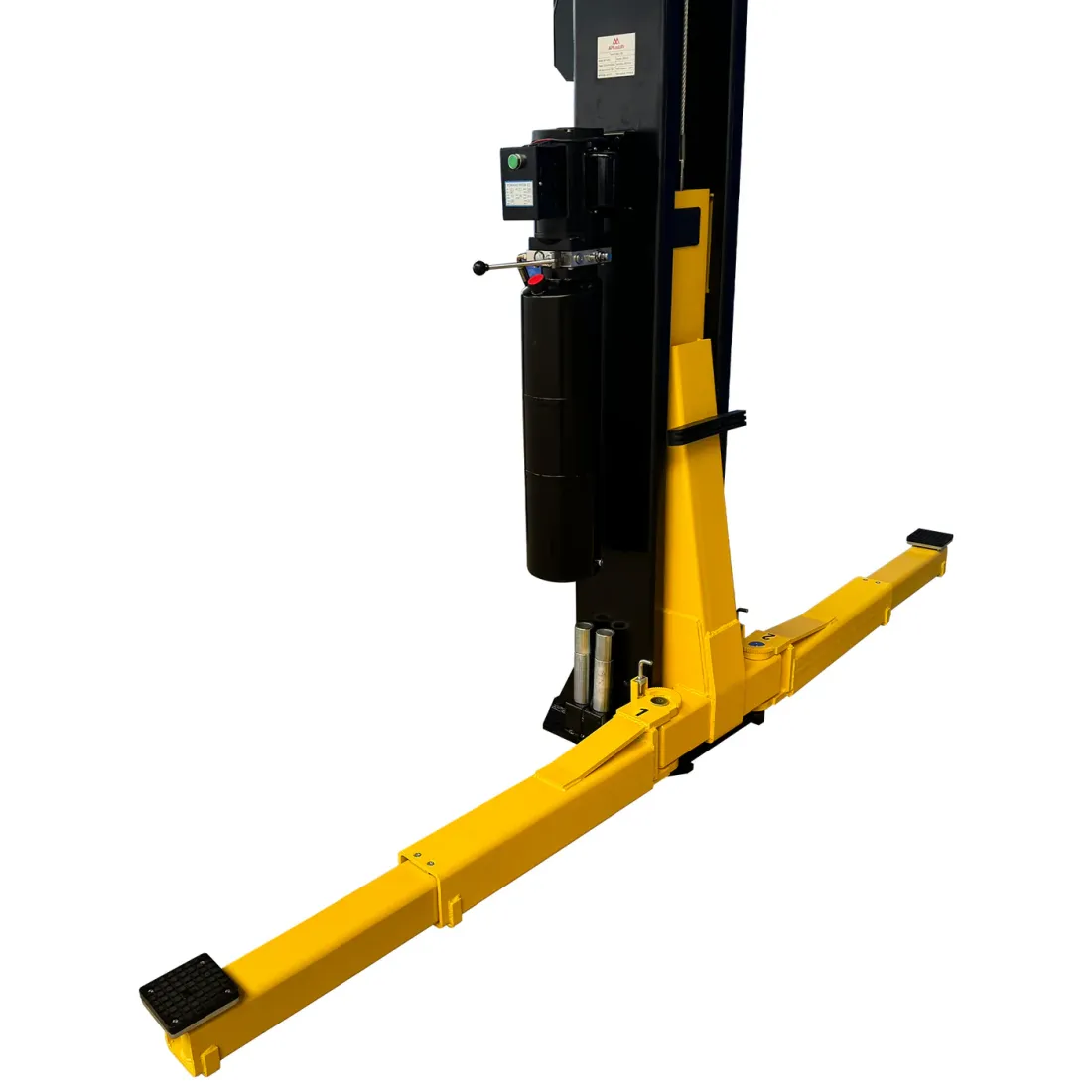

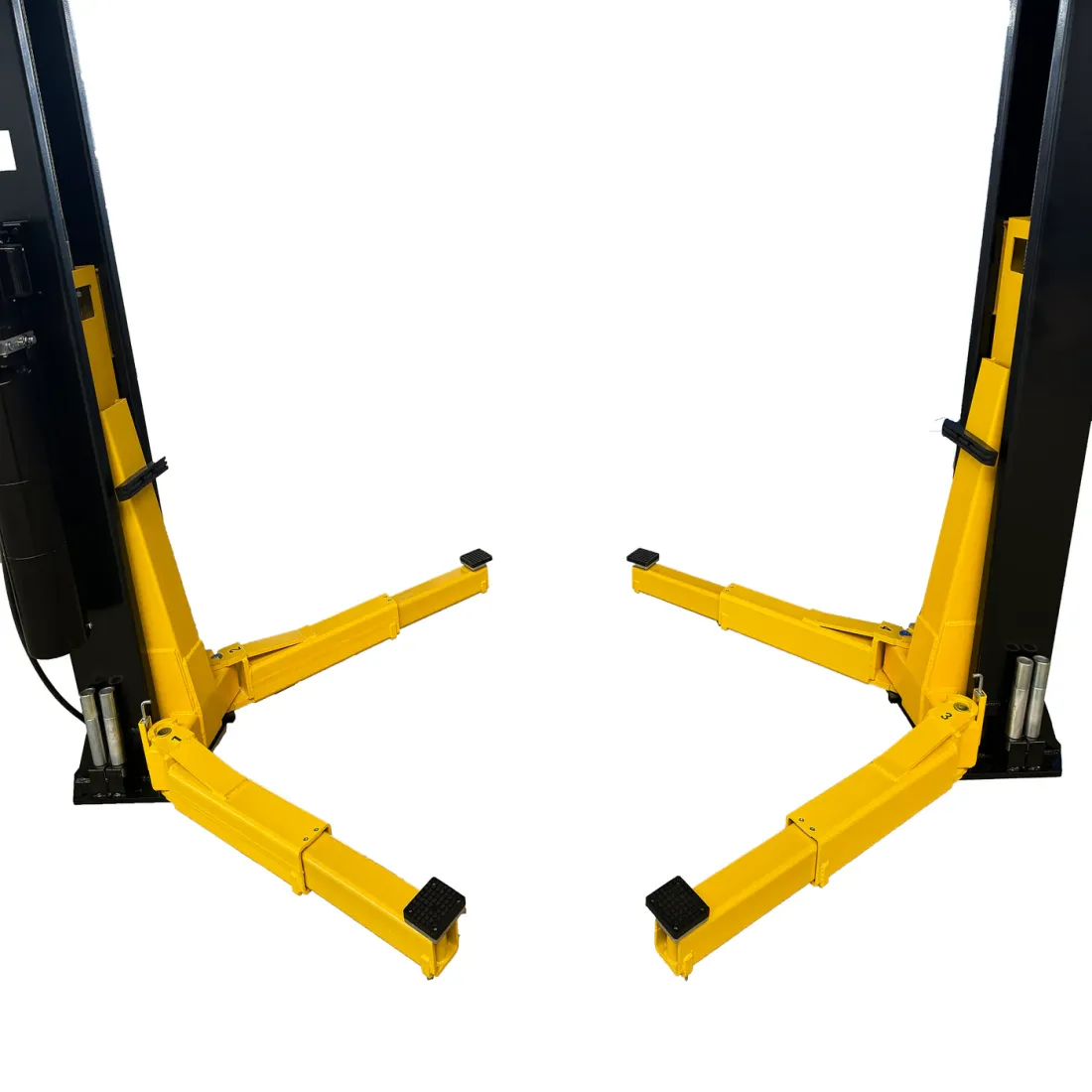

Construction & Arm Assembly
Arm Configuration: Symmetrical
Front Arms: Straight, 2-stage reach from 32 5/32″ to 49 7/32″
Rear Arms: Straight, 2-stage reach from 32 5/32″ to 49 7/32″
Material Thickness:
Column Steel: 1/4″
Carriage Steel: 1/4″
Carriage Yoke: 13/32″
Arm Steel: 5/16″
Base Plate: 5/8″
Steel Grade: Q235B structural steel
Included Components
Two complete sets of truck adapters
4 pcs × 5½″ tall
4 pcs × 2¾″ tall
10 anchor bolts
10 shims
Concrete & Installation Requirements
Concrete Thickness: Minimum 6″ at 3,500 PSI, reinforced with steel or fiberglass
4″ concrete permitted only for vehicles under 9,000 lbs
Professional installation strongly recommended
Safety & Performance Features
Single-point safety lock release
Automatic arm lock restraints
Built-in hydraulic relief valve to prevent overload
Manual lowering via control lever
Door guard rubber protection
Upper-limit safety switch for cylinder stroke protection
Heavy-duty 3/8″ synchronization cables with 3″ pulleys
Ultra-high molecular, self-lubricating nylon sliders for smooth carriage travel
Double seal rings protecting hydraulic PU components
Built for Demanding Professional Use
The APlusLift AP-14SR delivers exceptional lifting power, advanced safety systems, and long-term durability. It is an ideal solution for commercial automotive shops seeking a reliable, high-capacity overhead lift designed to perform consistently under daily professional workloads.
