ATLAS BP12000X 12,000 lb Baseplate Lift (12,000lbs Capacity)
$ 1,919
$ 0
Atlas BP12000 Two-Post Bottom Plate Lift – 12,000 lb Capacity
Heavy-Duty Performance for Professional Automotive Workshops
The Atlas BP12000 Two-Post Bottom Plate Lift is a powerful and dependable lifting solution designed for modern automotive service facilities. With a 12,000 lb lifting capacity, it is engineered to safely support a wide range of vehicles, from passenger cars to full-size trucks, making it an essential asset for professional mechanics and workshop owners.
What distinguishes the BP12000 is its bottom plate design, which enhances structural stability while allowing installation in shops with lower ceiling heights. Unlike overhead lifts, this configuration eliminates the need for an overhead crossbar, providing unobstructed access above the vehicle and improving overall workspace flexibility.
Built with heavy-duty steel construction and dual hydraulic chain-drive cylinders, the BP12000 delivers consistent, stable lifting performance. Advanced safety features—including automatic arm restraints and a single-point lock release system—ensure secure vehicle positioning and safe operation at all lift heights.
Key Features & Highlights
12,000 lb Lifting Capacity
Suitable for cars, SUVs, and light- to medium-duty trucks.Bottom Plate Design
Ideal for shops with height limitations while maintaining excellent stability.Dual Hydraulic Chain-Drive Cylinders
Manufactured to ANSI standards for smooth, balanced lifting.Single-Point Lock Release
Disengages both columns simultaneously for safe and efficient lowering.Symmetric Arm Configuration
Ensures balanced lifting and flexible vehicle positioning.Self-Lubricating Sliders & Bronze Bushings
Reduces wear and ensures smooth carriage movement over time.Automatic Arm Restraints
Prevent unintended arm movement during operation.Durable Powder-Coated Finish
Protects against corrosion and daily workshop wear.Complete Package Included
Mounting hardware and a FREE 12-piece truck adapter set included.
Safety, Reliability & Warranty
The Atlas BP12000 is designed with safety as a top priority. Integrated mechanical safety locks, overload protection, and robust hydraulic components create a secure working environment for technicians.
Warranty Coverage:
5-Year Structural Warranty
2-Year Hydraulic Cylinder Warranty
1-Year Power Unit Warranty
Technical Specifications
Capacity: 12,000 lbs

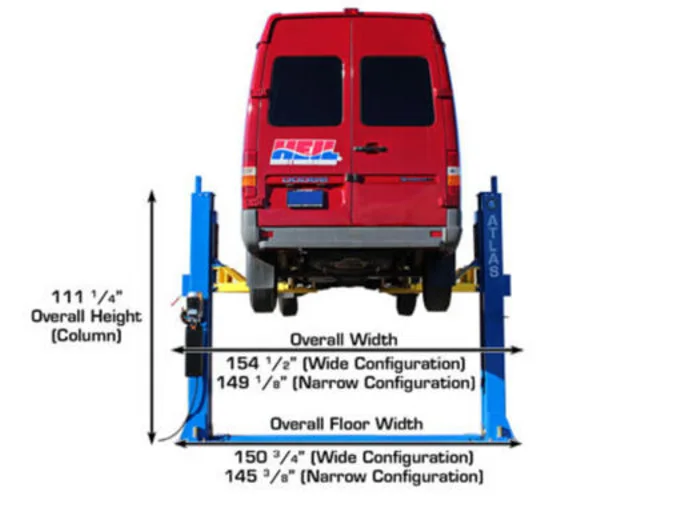

Overall Height: 122 1/2″ (10′ 2 1/2″)
Overall Floor Width: 149 3/8″ or 154 1/2″

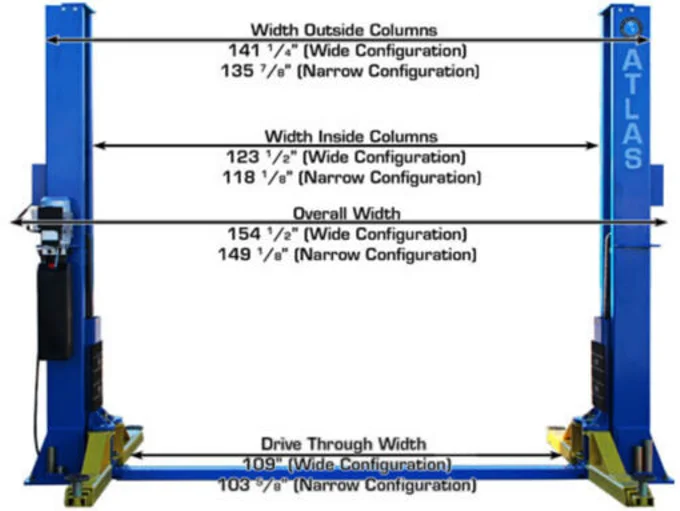

Outside Column Width: 135 7/8″ or 141 1/4″
Inside Column Width: 118 1/8″ or 123 1/2″

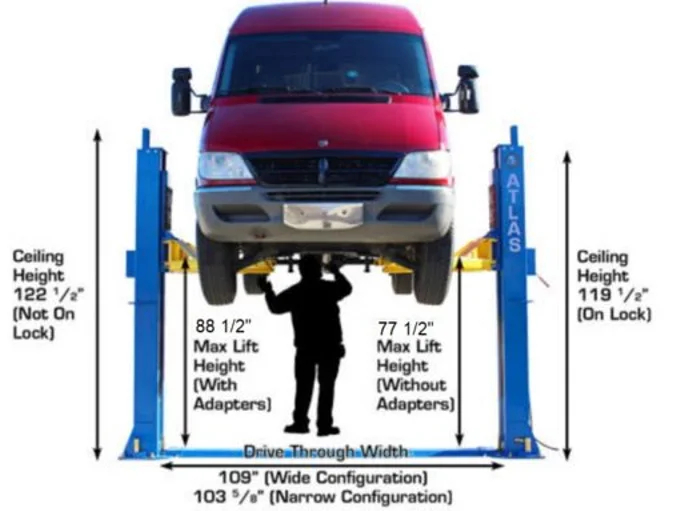

Drive-Through Width: 103 5/8″ or 109″

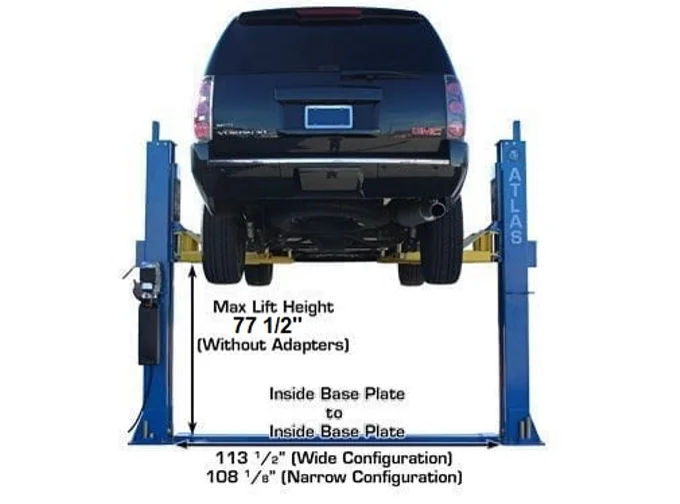

Maximum Lift Height (No Adapters): 77 1/2″
Maximum Lift Height (With Adapters): 88 1/2″
Minimum Arm Height: 4″
Column Size: 8 3/4″ × 14″
Steel Thickness: 6 mm

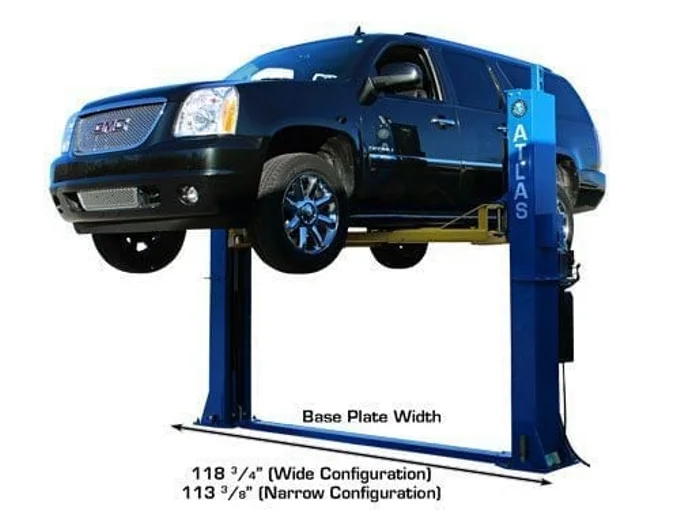

Base Plate Size: 18 1/2″ × 21 1/2″
Power & Installation Requirements
Power Supply: 220V, Single-Phase
Recommended Breaker: 30 Amp
Hydraulic Oil: 3–5 gallons AW32 / AW46 (not included)
Concrete Requirement: Minimum 6″ thickness, 3,000 PSI
Real-World Performance & Applications
The Atlas BP12000 is widely praised for its reliability, stability, and ease of use in professional environments. Workshops report improved workflow efficiency, reduced service time, and increased confidence when servicing larger vehicles such as SUVs and trucks.
Typical applications include:
Oil changes and routine maintenance
Brake and suspension service
Tire and wheel work
Transmission and exhaust repairs
A Proven Professional Solution
The Atlas BP12000 Two-Post Bottom Plate Lift combines strength, safety, and versatility into a single, workshop-ready solution. Its high lifting capacity, stable bottom plate design, and comprehensive safety features make it a dependable choice for automotive professionals who demand performance and durability.
