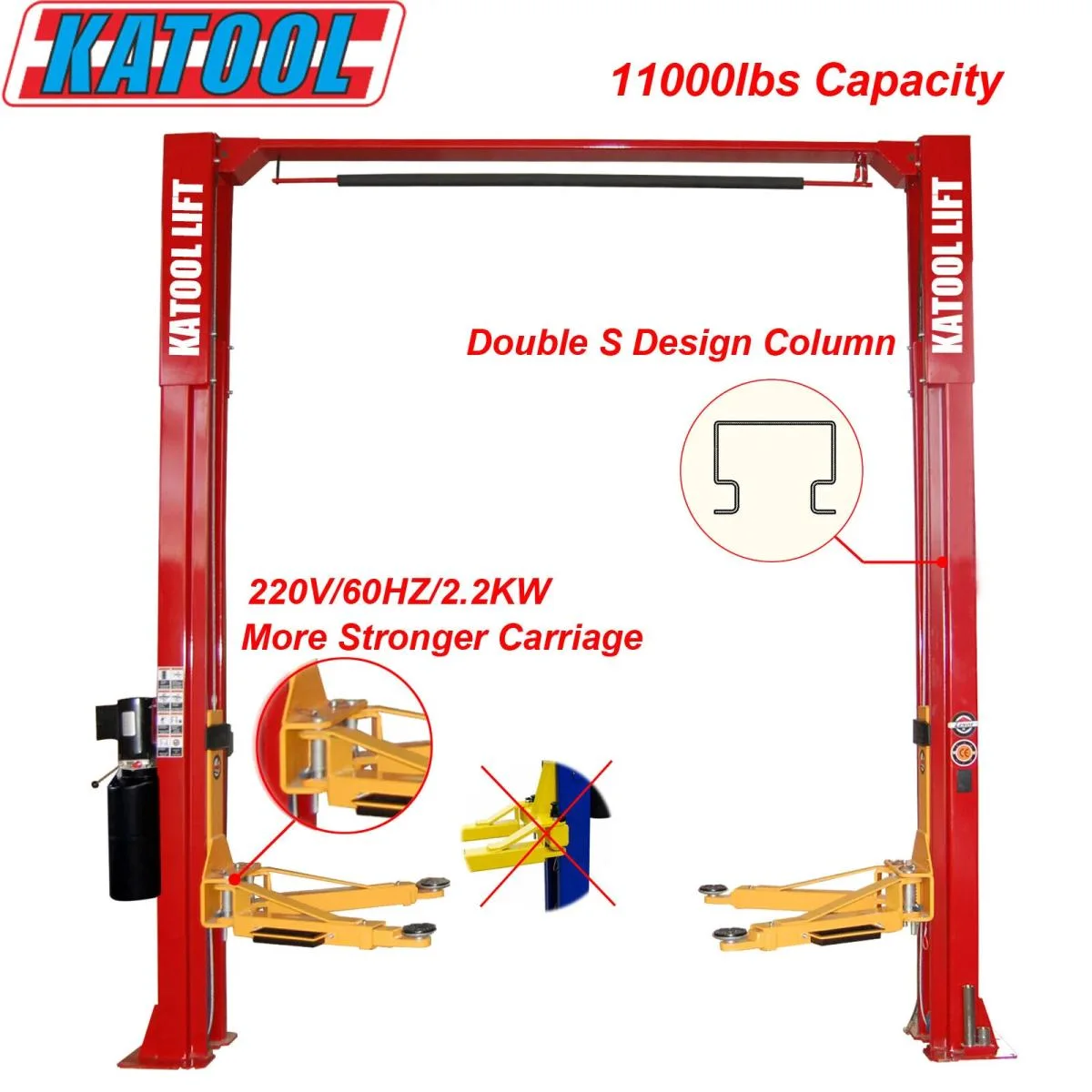

Katool ME-LM1100 Single Lock Release Two Post Vehicle Lift 11,000lbs
$ 1,299
$ 2,599
Professional-Grade Clear-Floor Automotive Lift
✔ 30-Day Money-Back Guarantee
✔ Free Shipping to the UK 🇬🇧
✔ Secure SSL-Encrypted Checkout
✔ 24/7 Customer Support
Product Overview
The Katool ME-LM1100 is a professional 11,000 lb two-post vehicle lift engineered for demanding automotive work. Designed with a symmetric clear-floor layout, single-point lock release, and CE-certified safety systems, this lift delivers reliable performance for professional repair shops and serious home garages.
With an impressive 94.5″ drive-through clearance, it provides excellent undercarriage access for maintenance, diagnostics, and repairs on cars, SUVs, and light trucks.

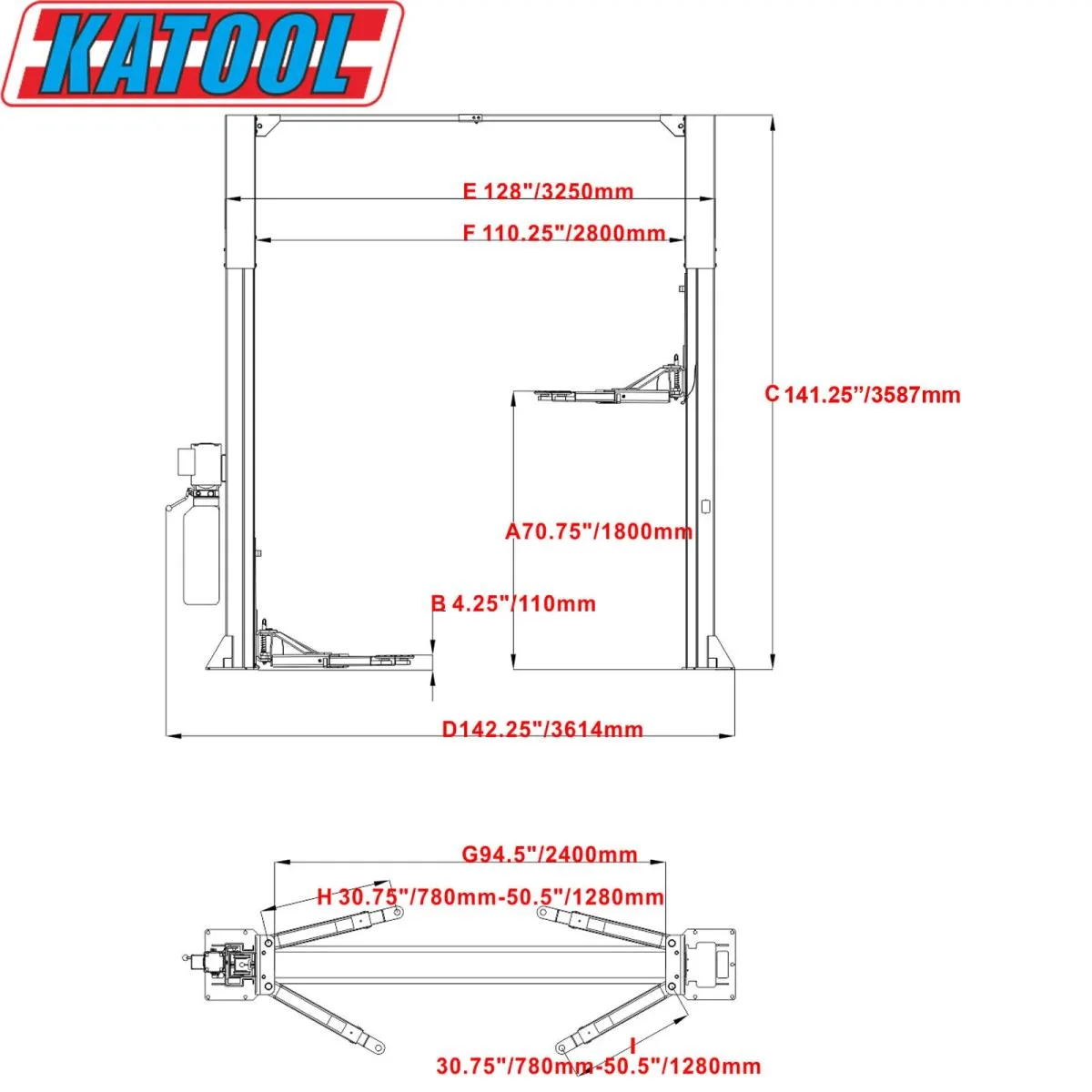

Official Specifications
Lifting Capacity: 11,000 lbs (5,000 kg)
Max Lifting Height: 70.75″ (1,800 mm)
Min Lowered Height: 4.25″ (110 mm)
Overall Height: 141.25″ (3,587 mm)
Overall Width: 142.25″ (3,614 mm)
Outside Column Width: 128″ (3,250 mm)
Inside Column Width: 110.25″ (2,800 mm)
Drive-Through Clearance: 94.5″ (2,400 mm)
Power Requirement: 220V (hardwired)
Total Weight: Approx. 620 kg (1,367 lbs)
Key Features
11,000 lb Capacity – Handles full-size trucks, SUVs, and heavy vehicles
Clear-Floor Design – No base plate; full under-vehicle access
Single-Point Lock Release – Safe, easy operation from one control
CE Certified – Meets European safety and quality standards

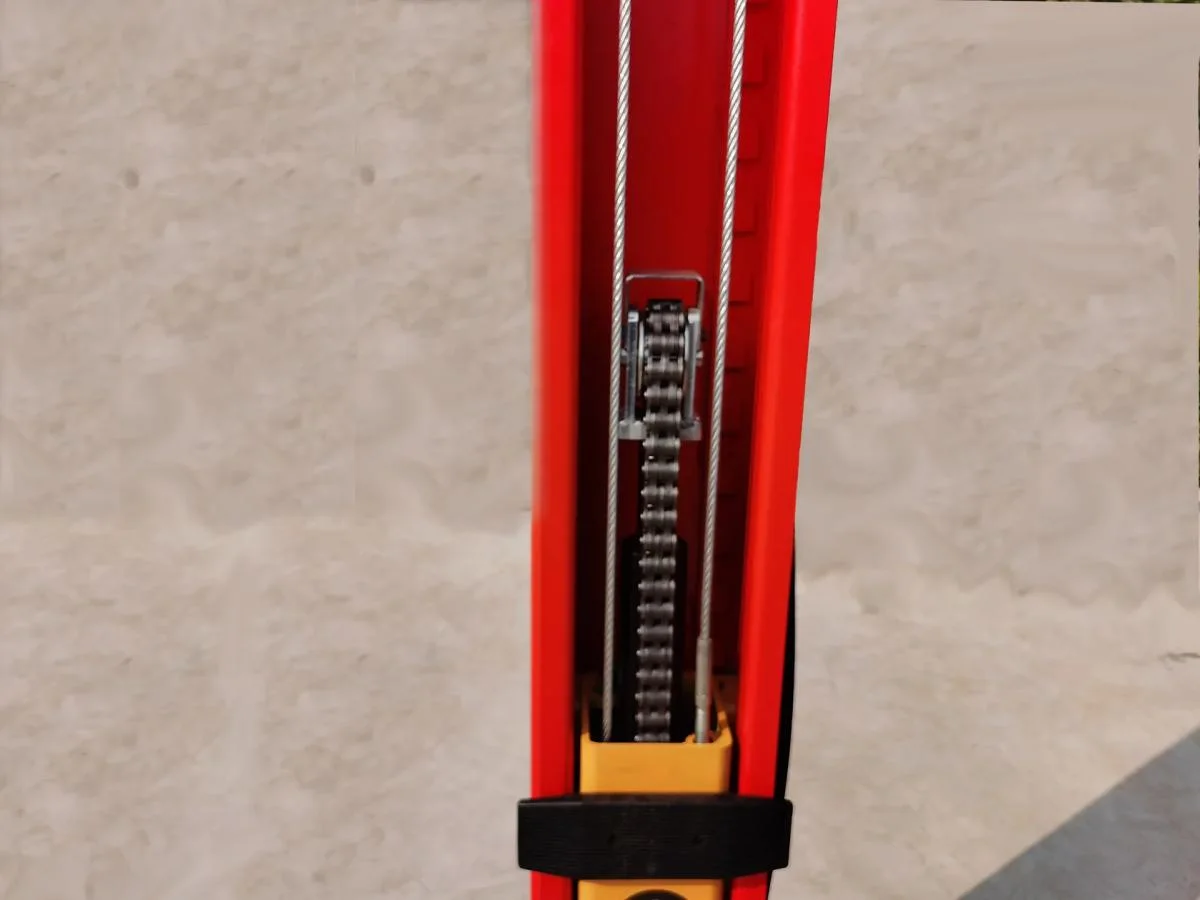

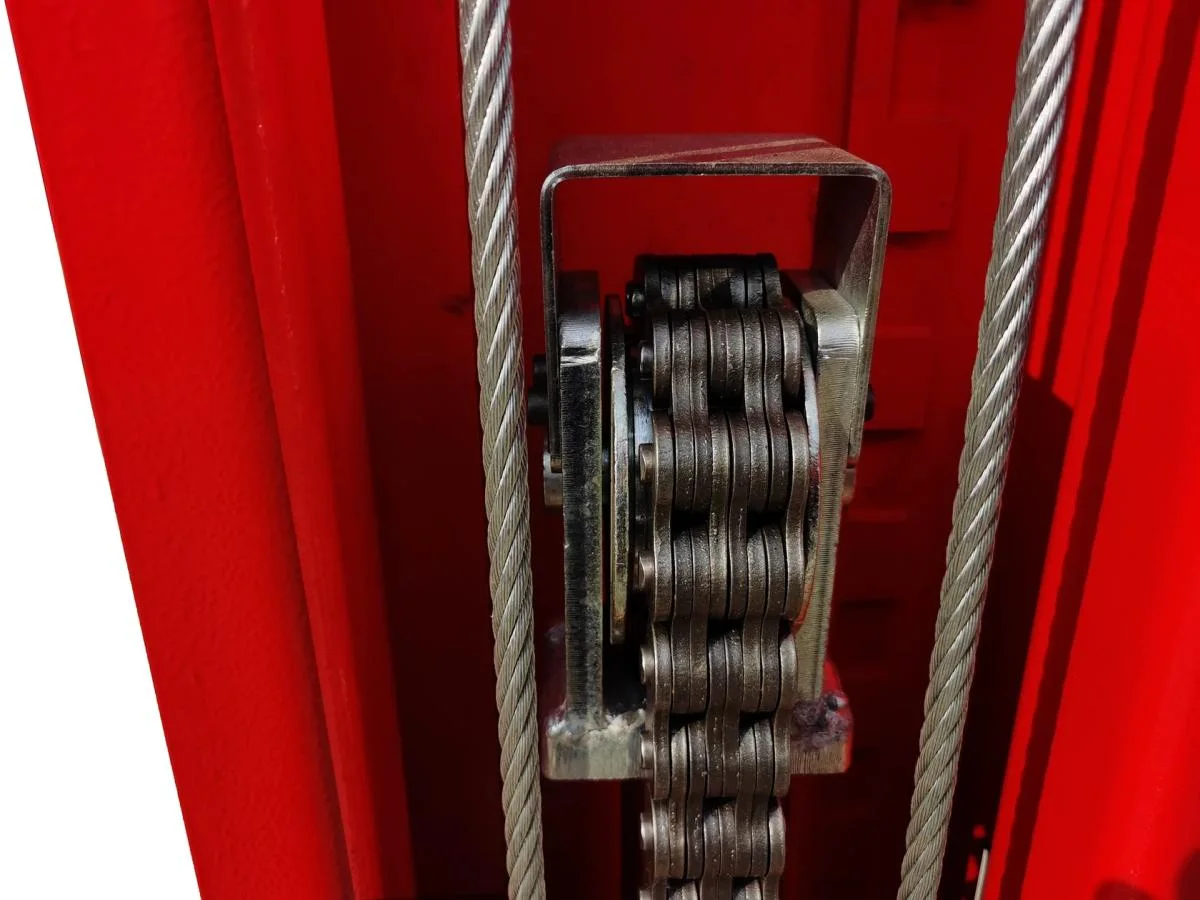

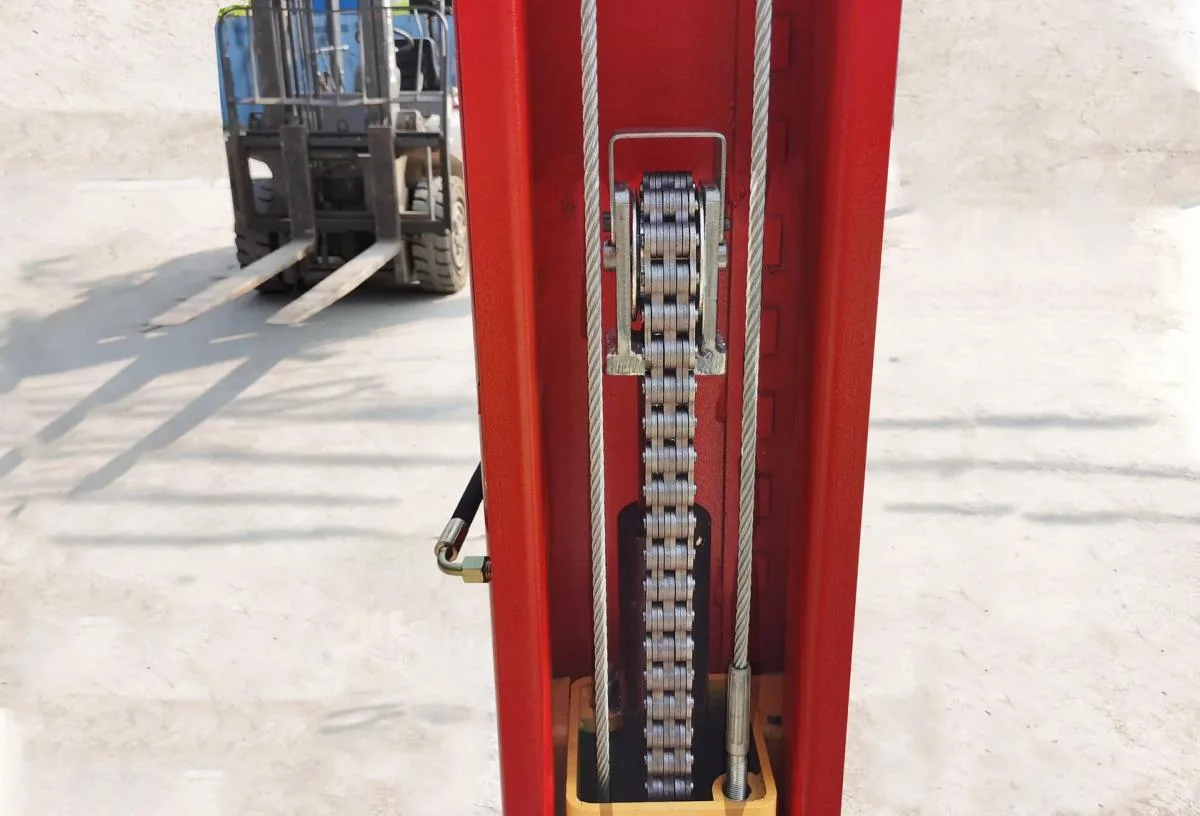

Dual Hydraulic Cylinders – Chain-driven for smooth, balanced lifting
Wide Drive-Through Clearance – Ideal for transmission and exhaust work
Advanced Safety Features
Overhead automatic shutoff bar
Multiple mechanical safety lock positions
Single-point controlled lowering system
Rubber door guards to protect vehicle doors
Feet protection safety rails at column bases

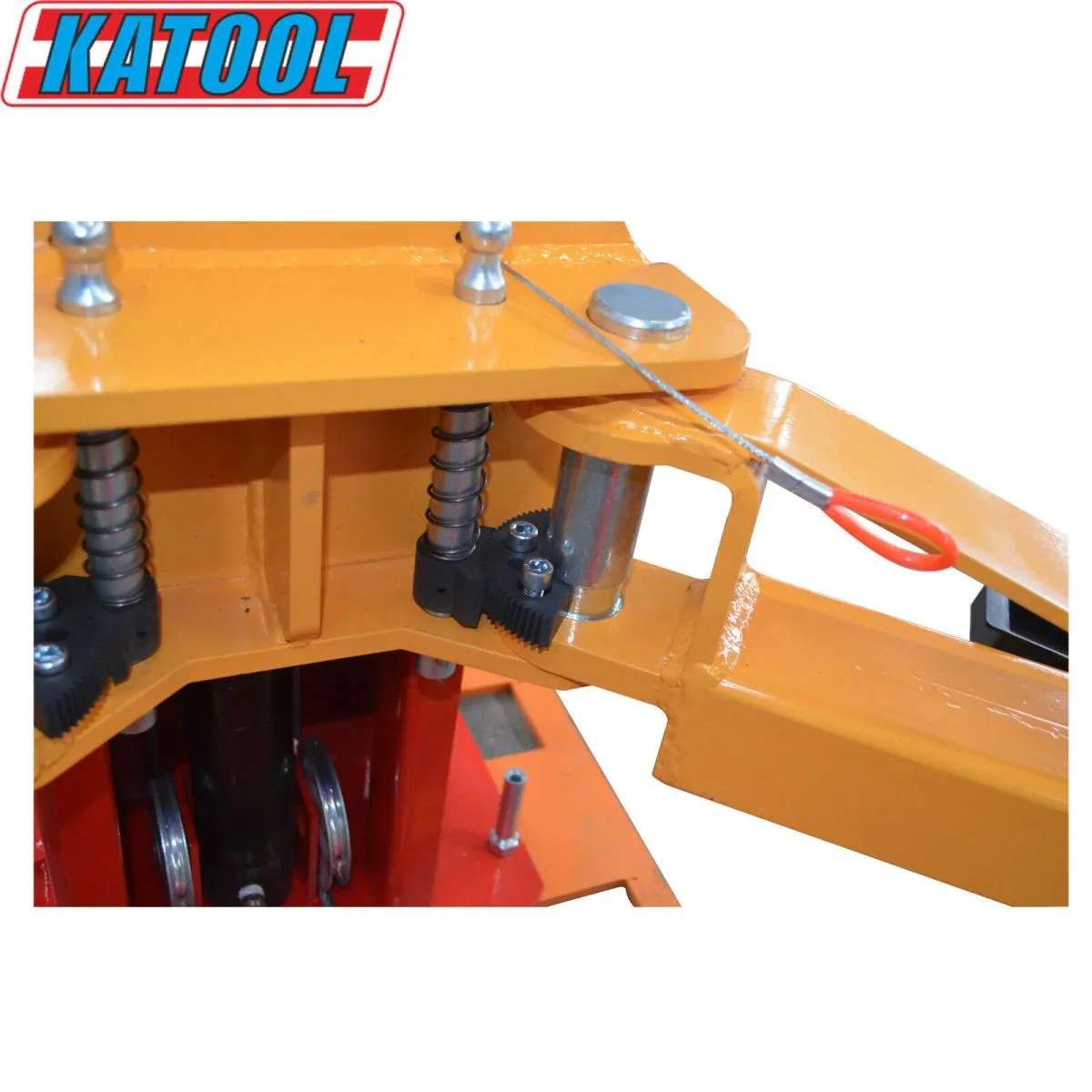

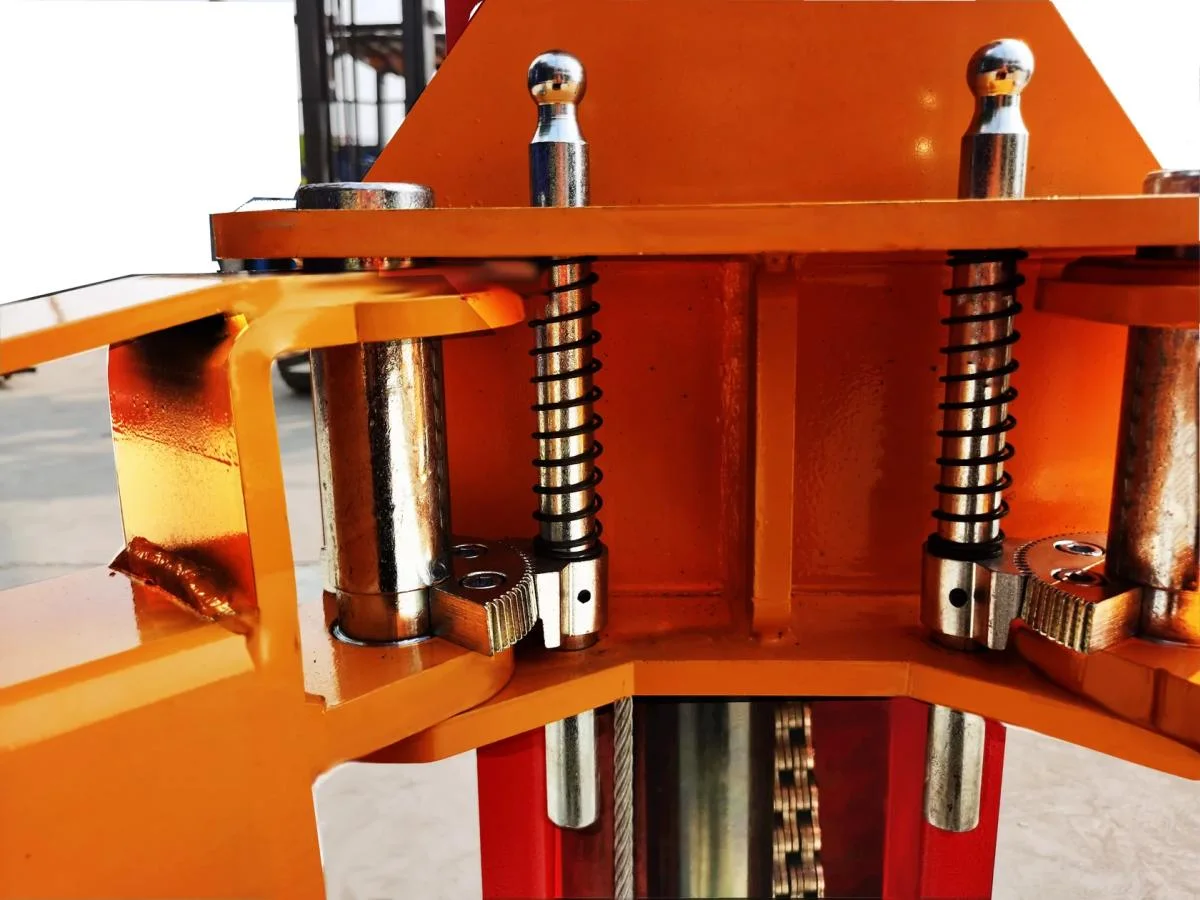

Automatic arm restraints during operation
Ideal Applications
Professional Auto Repair Shops – Daily heavy-duty use
Serious Home Mechanics – With proper garage specifications
Trucks & SUVs – Up to 11,000 lbs
Undercarriage Work – Exhaust, suspension, transmission
Brake & Tire Service – Full wheel access
CRITICAL Installation Requirements (READ BEFORE PURCHASE)
⚠ Minimum Ceiling Height: 12 ft (144″) REQUIRED
⚠ Floor Space: Minimum 142″ W × 160″ L
⚠ Concrete Floor: 5.9″ (150 mm) minimum, 3,000 PSI
⚠ Electrical: 220V hardwired installation ONLY
⚠ Professional Installation: STRONGLY RECOMMENDED
Failure to meet these requirements may void warranty and compromise safety.
Electrical Requirements
Voltage: 220V AC (NOT 110V)
Connection: Hardwired only
Circuit: Dedicated 20–30 amp circuit recommended
Electrician: Licensed professional required
Permit: May be required depending on location
What’s Included
Two main lift columns with hydraulic cylinders
Overhead clear-floor beam assembly
220V hydraulic power unit

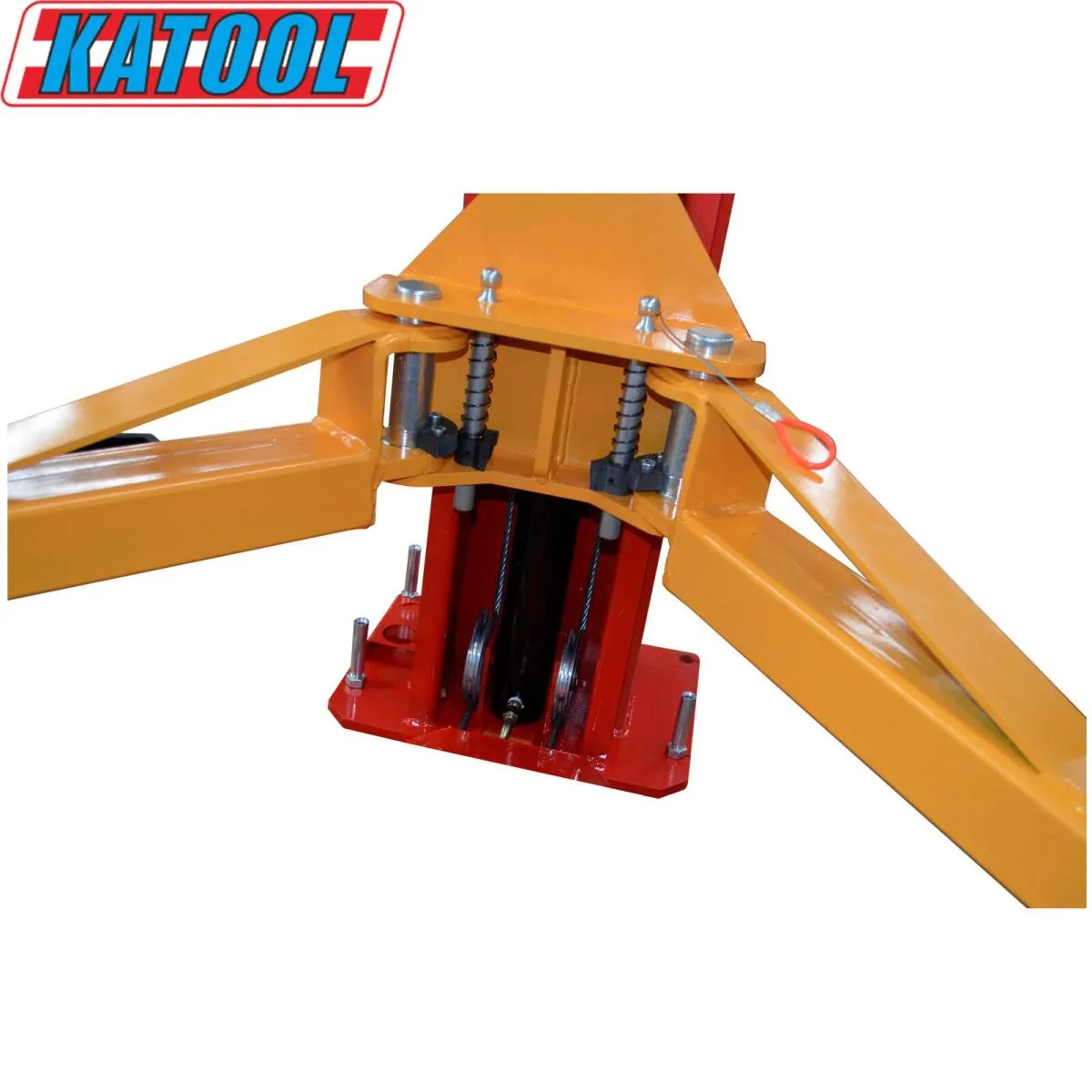

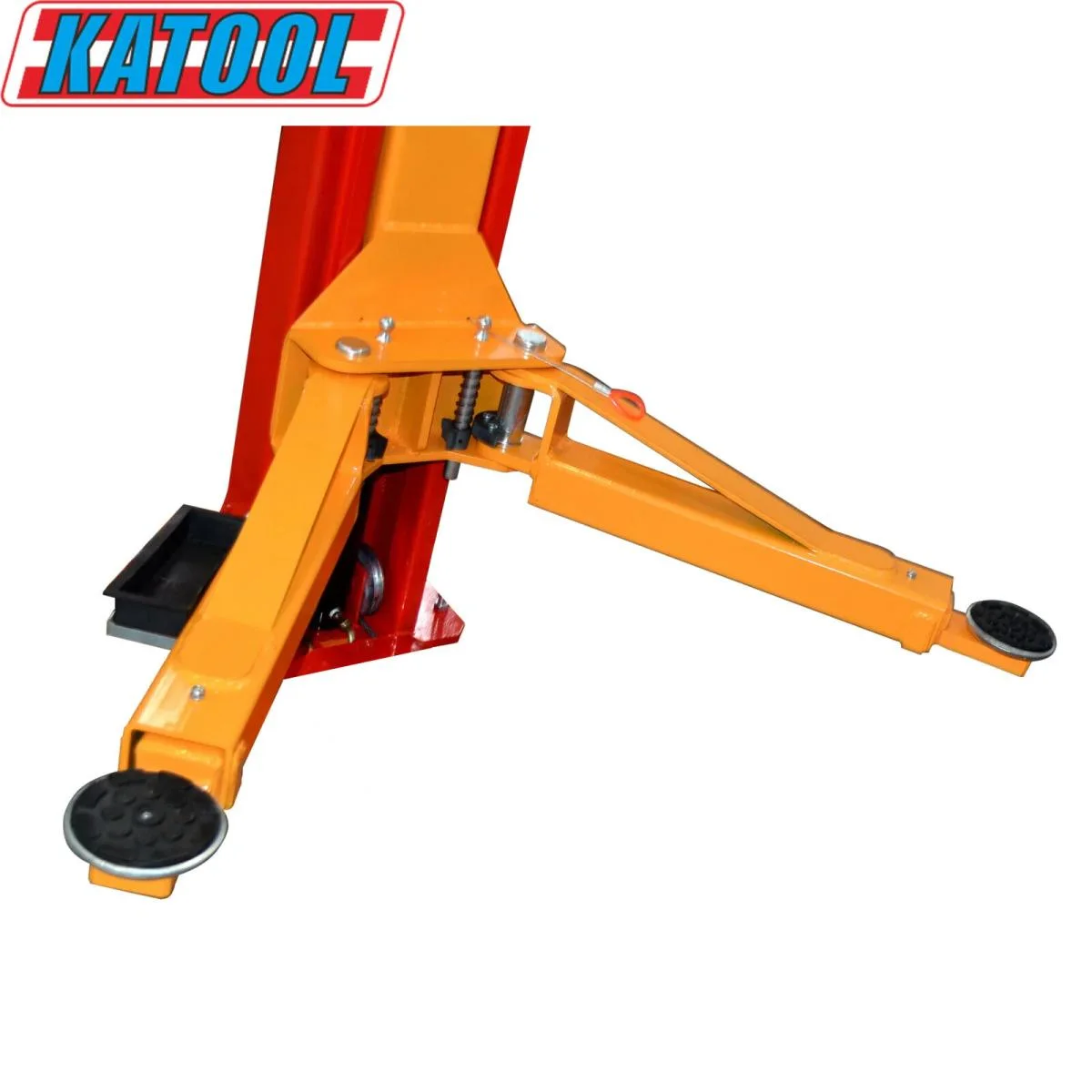

Four lift arms with adjustable adapters
Rubber lift pads (4)
FREE pad extensions
Safety lock system (multiple positions)
Rubber door guards
Feet protection safety rails

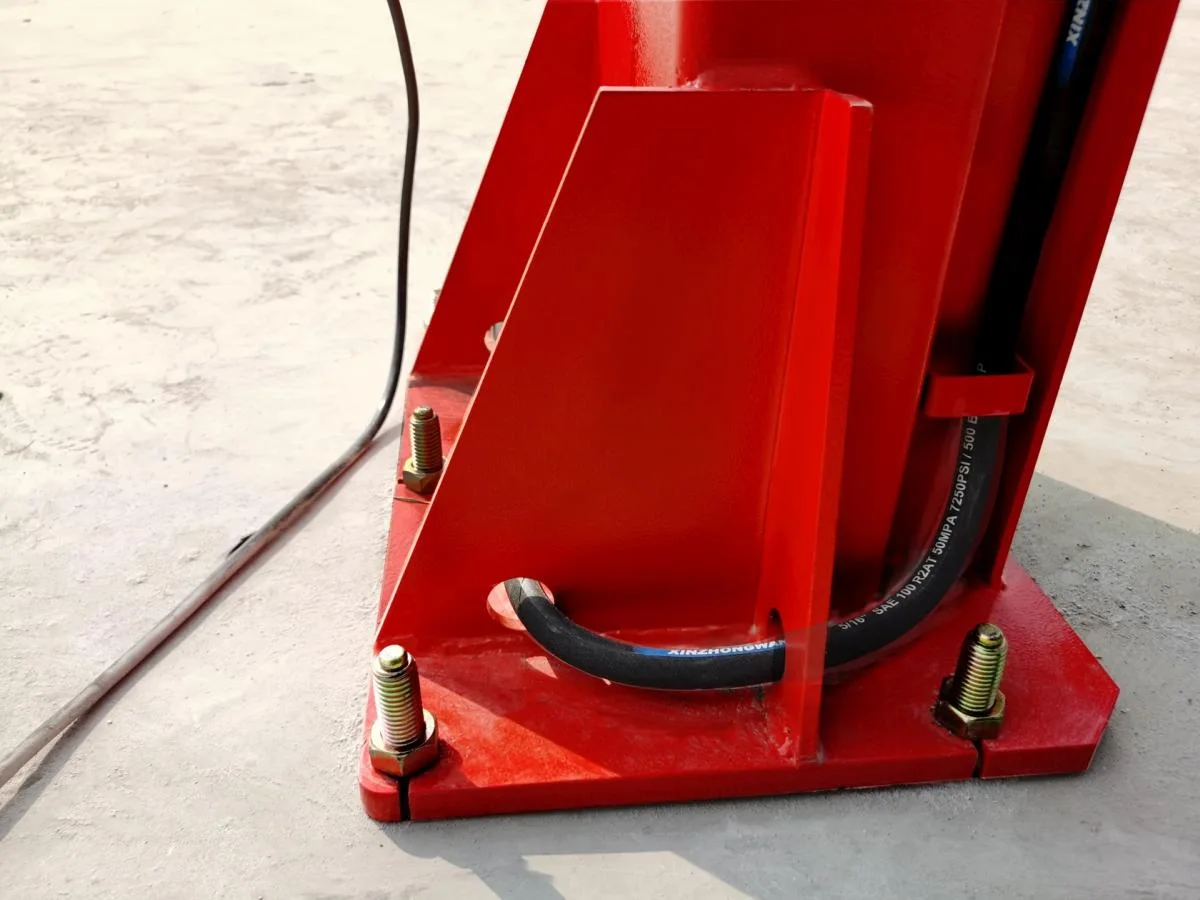

Anchor bolts & mounting hardware
Installation manual with diagrams
12-Month Manufacturer Warranty
Installation Overview
Verify ceiling height, floor thickness, and electrical supply
Mark anchor points per installation manual
Drill concrete and install anchor bolts
Assemble columns and overhead beam (2–3 people required)
Install hydraulic system and power unit
Licensed electrician hardwires 220V connection
Test safety systems before first use
Typical Install Time: 4–6 hours (experienced team)
Warranty Coverage (12 Months)
Structural components
Hydraulic components
Electrical components
Materials and workmanship defects
✔ Proper installation and maintenance required
✔ Keep all installation and warranty records
Maintenance Schedule
Daily: Visual inspection before use
Weekly: Check locks, arm restraints, pads
Monthly: Inspect hydraulic fluid and leaks
Quarterly: Lubricate moving parts
Annually: Professional inspection recommended
Vehicle Compatibility
Compatible With:
Sedans, coupes, wagons
SUVs & crossovers
Pickup trucks (½-ton class)
Low-profile sports cars
NOT Suitable For:
1-ton trucks
Commercial vehicles
Any vehicle over 11,000 lbs
Important Warnings
❌ Not for low-ceiling garages
❌ Not plug-and-play
❌ Do not exceed rated capacity
❌ Do not lift without correct pad placement
❌ Regular maintenance required
